Silicone Rubber Self Fusing Electrical Tape - MIL-I-46852 / A-A-59163 / MIL-I-22444
365°F / 180°C Continuous Exposure: Higher Intermittent

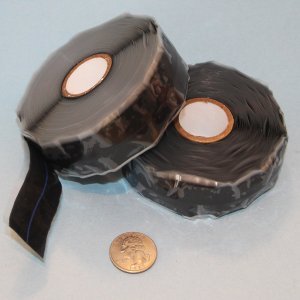

FlameShieldä rectangular (Type I) and triangular (Type II) profile silicone rubber self-fusing compression tapes meeting A-A-59163 and Mil-I-46852 specification are used for a variety of critical electrical wiring and cable splicing and protection jobs. Especially suited for aviation and marine environments, as well as outdoor weathering environments.
The tape has no adhesive, but sticks to itself (self-fuses or self amalgamating) when stretched and wrapped onto itself. The tapes starts curing within minutes, and after several hours cannot be unwound or removed without using a sharp knife or blade. This tape makes a waterproof, weatherproof and air tight protection.
MIL-I-22444 tape is available in many colors, but clear, oxide-red and black are the most common. The tape has a built-in fiberglass sinusoidal reinforcement limiting the amount of elongation (either a maximum of 15% or 25%). Tapes meeting Mil-I-22444 provide superior electrical insulation with a minimum of 350 volts per mil (.001") of tape thickness at 365°F / 180°C. A 20mil tape therefore provides 7000 volts per wrap of insulation value.
This tape is available in almost any color, but oxide-red and black are the most common. The triangular tape has a guideline stripe in the center which aids in achieving a 50% spiral wrap. Triangular levelwrap tapes provide a smooth surface on spiral wrapping, preventing the tape wrap area from snagging when pulling a wire or cable through a bundle or over objects or openings.
FlameShieldä tapes meeting A-A-59163 and Mil-I-46852 provide superior electrical insulation with a minimum of 300 volts per mil (.001") of tape thickness at 365°F / 180°C. A 20mil tape therefore provides 6000 volts per wrap of insulation value.
This tape is also used to wrap hydraulic connections and to make vibration resistant bumpers and spacers for wiring, cable, hose, pipes and lines. This tape is used to wrap and hold insulation in place on hot air ducts.
Tapes can be constructed to meet the following specifications:
· McDonnel Douglas / Boeing DMS-2186 Type II
· McDonnell Douglas Helicopter HS5215
· General Dynamics P5384
· Martin Marietta MMS 517-6 Type II,
· McDonnell Douglas P.S. 17115,
· ST0130RB0078 Type I,
· 3003M70P01,
· MS70T09-S,
· WS1363A,
· Premier Farnell 810112,
· Safe Flight 59562-5.
· NSN-5970-00-949-4846
· NSN-5970-00-955-9976
· NSN 5970-00-480-1329
· Equivalent to Type I Tapes with the following part numbers: 56756, 57063,
57090, 50005, 50006, 57161, 50022, 50039, 57806, 612-1, 615-.75, 615-1,
620-.5, 620-.75, 620-1, 620-1.25, 630-.5, 630-1
57090, 50005, 50006, 57161, 50022, 50039, 57806, 612-1, 615-.75, 615-1,
620-.5, 620-.75, 620-1, 620-1.25, 630-.5, 630-1
· Equivalent to Type II Tapes with the following part numbers: 50014, 50215,
50361, 53304, 50573, 56517, 56265, 600R and 600T levelwrap series; 602-1,
603-1, 604-1, 604-1.25, 605-1.25, 605-1.5, 606-1.5, 605-1, 606-1, 607-1
50361, 53304, 50573, 56517, 56265, 600R and 600T levelwrap series; 602-1,
603-1, 604-1, 604-1.25, 605-1.25, 605-1.5, 606-1.5, 605-1, 606-1, 607-1
· DMS-2186 Type I
· EMD/EMS 2074
· General Dynamics P5189 & 5-00857
· General Electric A50A493-C/D & A50E112
· GE A40493
· GE A50E112 (15%)
· AE 26495-001
· ASNA 5107
· Grumman GT353V
· RMS315 Type I
· Simmonds 151274 (black)
· IBM 6084744
· RL6000SA (25%)
· RL6000SB (15%)
· NSN 5970-01-325-8971 (25%)
· NSN 5970-00-841-1172 (15%)
·Equivalent to Part Number: 58609, 58607, 58613, 58611, 58615, 58617, 58621, 58619,
SB01015, SA01015, SB00520, SA00520, SB01020, SA01020, SB01050, SA01050
5970-00-446-8928 Oxide-red, .5" width, .018"
 |
 |
 |
Mil-I-46852 Mil Spec Silicone Rubber Self Fusing Electrical Tape
A-A-59163 Commercial Spec Silicone Rubber Self Fusing Electrical Tape
MIL-I-22444 MIL Spec Silicone Rubber Self Fusing Electrical Tape - Reinforced (Type I Only)
Silicone Rubber Self Fusing Electrical Tape with National NSN / NATO Stock Number MIL Spec Tapes
CALL FOR PRICING
These tapes are not interchangeable. The NSN number specifies other parameters of the tape such as thickness, profile, width, reinforcement, rubber composition, etc.
NSN Numbers: Color Our Part Number
5970-00-082-3226 Black T-SR-NSN-00-082-3226
5970-00-177-1627 Black T-SR-NSN-00-177-1627
5970-00-446-3928 Black T-SR-NSN-00-446-3928
5970-00-446-8928 Red T-SR-NSN-00-446-8928
5970-00-480-1329 Red T-SR-NSN-00-480-1329
5970-00-782-5056 Red T-SR-NSN-00-782-5056
5970-00-839-0824 Red T-SR-NSN-00-839-0824
5970-00-841-1172 Red T-SR-NSN-00-841-1172
5970-00-949-4846 Red T-SR-NSN-00-949-4846
5970-00-955-9976 Black T-SR-NSN-00-955-9976
5970-01-140-5672 Red T-SR-NSN-01-140-5672
5970-00-177-1627 Black T-SR-NSN-00-177-1627
5970-00-446-3928 Black T-SR-NSN-00-446-3928
5970-00-446-8928 Red T-SR-NSN-00-446-8928
5970-00-480-1329 Red T-SR-NSN-00-480-1329
5970-00-782-5056 Red T-SR-NSN-00-782-5056
5970-00-839-0824 Red T-SR-NSN-00-839-0824
5970-00-841-1172 Red T-SR-NSN-00-841-1172
5970-00-949-4846 Red T-SR-NSN-00-949-4846
5970-00-955-9976 Black T-SR-NSN-00-955-9976
5970-01-140-5672 Red T-SR-NSN-01-140-5672
5970-01-142-8454 Red T-SR-NSN-01-142-8454
5970-01-147-3595 Red or Black T-SR-NSN-01-147-3595
5970-01-250-8756 Red T-SR-NSN-01-250-8756
5970-01-259-5830 Red or Black T-SR-NSN-01-259-5830
5970-01-250-8756 Red T-SR-NSN-01-250-8756
5970-01-259-5830 Red or Black T-SR-NSN-01-259-5830
5970-01-263-0373 Red T-SR-NSN-01-263-0373
5970-01-263-3931 Black T-SR-NSN-01-263-3931
5970-01-273-6030 Red or Black T-SR-NSN-01-273-6030
5970-01-276-5277 Red or Black T-SR-NSN-01-276-5277
5970-01-276-5277 Red or Black T-SR-NSN-01-276-5277
5970-01-286-7456 Red T-SR-NSN-01-286-7456
5970-01-342-8289 Black T-SR-NSN-01-342-8289
5970-01-396-1601 Red T-SR-NSN-01-396-1601
5970-01-432-6018 Red T-SR-NSN-01-432-6018
5970-01-491-8992 Black T-SR-NSN-01-491-8992
5970-01-495-5211 Black T-SR-NSN-01-495-5211
5970-01-541-9092 Red or Black T-SR-NSN-01-541-9092
9320-01-552-7024 Red or Black T-SR-NSN-01-552-7024
5970-01-560-3208 Red or Black T-SR-NSN-01-560-3208
5970-01-600-6091 Red T-SR-NSN-01-600-6091
8030-01-587-1885 Red T-SR-NSN-01-587-1885
5970-14-459-8605 Black T-SR-NSN-14-459-8605
5970-01-342-8289 Black T-SR-NSN-01-342-8289
5970-01-396-1601 Red T-SR-NSN-01-396-1601
5970-01-432-6018 Red T-SR-NSN-01-432-6018
5970-01-491-8992 Black T-SR-NSN-01-491-8992
5970-01-495-5211 Black T-SR-NSN-01-495-5211
5970-01-541-9092 Red or Black T-SR-NSN-01-541-9092
9320-01-552-7024 Red or Black T-SR-NSN-01-552-7024
5970-01-560-3208 Red or Black T-SR-NSN-01-560-3208
5970-01-600-6091 Red T-SR-NSN-01-600-6091
8030-01-587-1885 Red T-SR-NSN-01-587-1885
5970-14-459-8605 Black T-SR-NSN-14-459-8605
DMS2186 Mil Spec McDonnel Douglas / Boeing Silicone Rubber Self Fusing Electrical Insulation
Garmin 249-00114-00 Silicone Rubber Self Fusing Electrical Tape
Tyco Electronics TE Connectivity 608036 Equivalent Silicone Fusion Electrical Tape
General Dynamics P5384 Silicone Rubber Electrical Insulation Tapes
General Electric Power Generation A50A493 & 3003M70 Silicone Rubber Self Fusing Tapes
Versions included are A50A493A, A50A493B, A50A493C and A50A493D; 3003M70P01, 3003M70P02, 3003M70P03 and 3003M70P04.
General Electric Transportation Systems A50E112 / EMS2074 Silicone Rubber Self Fusing Tapes
Lockheed-Martin Space Systems 5-00857 & 5-00615 Silicone Rubber Self Fusing Tapes
Lockheed-Martin Systems Integration 6084744 Silicone Rubber Self Fusing Tapes
Lockheed-Martin Tactical Systems P5189 Silicone Rubber Self Fusing Tapes
Rockwell International ST0130RB0078 Silicone Rubber Self Fusing Tapes
RL6000SA / RL6000SB Stretchtape Kirkhill TA Esterline Equivalent Silicone Elastomer Tape
MOX 600 R Series & T Series Silicone Rubber Electrical Insulating Tapes
· Type I Tapes with the following part numbers: 56756, 57063, 57090, 50005, 50006, 57161, 50022, 50039, 57806, 612-1, 615-.75, 615-1, 620-.5, 620-.75, 620-1, 620-1.25, 630-.5, 630-1
· Type II Tapes with the following part numbers: 50014, 50215, 50361, 53304, 50573, 56517, 56265, 600R and 600T levelwrap series; 602-1, 603-1, 604-1, 604-1.25, 605-1.25, 605-1.5, 606-1.5, 605-1, 606-1, 607-1
Simrit® Freudenberg NOK Equivalent Type I & Type II Self Fusing Electrical Insulating Silicone Rubber Tape
SIMRIT is a registered trademark of Freudenberg NOK.
Simrit® Freudenberg NOK Equivalent MIL-I-22444 Controlled Elongation Self Fusing Electrical Insulating Silicone Rubber Tape
SIMRIT is a registered trademark of Freudenberg NOK
L-3 Communications Tape, Electrical, Silicone, Self-Fusing, Non-Reinforced, 40014362-000, 40014362-001, 40014362-002, 40014362-003
Seal-Tite™ Fusion Wrap Equivalent Silicone Elastomer Tape P29950 / P28566 / P40630 / P36728
A6900W Eaton Weatherhead Equivalent Silicone Elastomer Electrical Insulating Tape
4529670544 Markel 5970-00-955-9976 Equivalent Electrical Insulating Tape
TYT200-1 ColeFlex Cole-Pak Self Fusing "No Heat" Silicone Tape
Nimikkeistokeskus NCB Finland 10134254 Silicone Electrical Insulating Tape
Locomotive Electric Traction Motor Coil Insulation & Connector Junction Tape
500°F / 260°C Continuous Exposure: Higher Intermittent
Withstands Molten Splash & Welding Splatter/Grinding Sparks
Custom fabricated insulated wrapping tape for pipe, hose and line protection: high temperature protection and cold temperature protection.
Primary Field Coil Insulation Tape:
GE 84A210606P154 & GE 84A210606P157; Our part number T-SR-84
GE 41A239176P70 & GE 41A239176P71; Our part number T-SR-41
EMD 8205562, EMD 8227441, EMD R718024; Our part number T-SR-82 meets EMS 558 specification
EMD R718051, EMD R718077, EMD 8220410, EMD 40100391, EMD 8257527; Our part number T-SR-71 meets EMS 558 specification
GE 21261; Our part number T-SR-21
GE 84A210606P158; Our part number T-SR-158
Self-fusing Connector Junction Insulation Tape:
EMD 8355873; Our part number T3020-R004-12 meets GE A50E112, EMS 2074 specification
EMD 4089227, GE 84A210606P152; Our part number P3272-10R12-P4 meets EMS 2074 specification
